SELF CLEANING FILTER MANUAL - model MX
Filter self-cleaning backwash according to DIN 19632 for the filtration of sand and solid impurities from drinking water. Filter element modular filter cartridge with high quality stainless steel 100 micron (on request also 50, 200, or 500 micron). Body in brass dezincification or technical material synthesis; link for rinse water, pressure gauge and threaded connections up to DN 50 (2 "), flanges from DN 65.The self-cleaning only takes place with water filtered through a filterinside. Nominal pressure PN 16, max. water temperature 90 ° C.

SELF CLEANING FILTER AUTOMATIC - model MXA
Self-cleaning filter to backwash completely automatic according to DIN 19632 for the filtration of sand and solid impurities from drinking water .
Modular filter element cartridge with high quality stainless steel 100 micron (on request also 50 , 200, or 500 micron). Body in brass dezincification or technical material synthesis ; link for rinse water , pressure gauge and threaded connections up to DN 50 (2 ") , flanges from DN 65 . The self-cleaning occurs only with filtered water
through an internal filter . Nominal pressure PN 16 , max. water temperature 90 ° C.
Compared to the type MX is equipped with units of integrated motor , electronic control unit programmable separate indicator of faults ; maintenance intervals programmable . Includes cable and power cord with plug schuco , electrical panel for wall mounting , differential pressure control and timer ; potential -free output .
Electrical connection: 230V, 50Hz.fitered through an internal filter .
Nominal pressure PN 16 , max. water temperature 90 ° C.

 SELF CLEANING FILTERS household

 SELF CLEANING FILTER - model AP-PRO

Innovative filter for the removal of suspended particles, sand and metals. Made from Delrin body, in / out connections placed on plate which can be rotated 360 ° brass vase SAN transparent plastic drain valve.
The filter comes complete with filter cartridge made of washable nylon.The water enters the filter and through the cartridge from 'inside to outside, and comes out clean. Turning the knob counter-clockwise turns on the washing with water at high speed, thanks to the Venturi principle of operation of the plastic cylinder inside.The dirty water flows out from the exhaust valve. To finish cleaning the cartridge, turn the knob clockwise. During the cleaning cartridge does not stop the supply of filtered water to the network.

SELF CLEANING FILTER - model AP-ECO HT

The filter AP-EASY is designed for the filtration of drinking water and industrial water. Its function is to protect both the pipes that the installations connected to it from corrosion and deterioration due to the passage of foreign bodies such as sand, rust particles, etc..
The filter made with brass head, SAN bowls, with mesh filter cartridge Arnite polyester washable. The washing occurs in fast and easy way by actuating the tap at the bottom of the vessel. The HT version suitable for the filtration of water at high temperature (up to 80 °C) and is equipped with vessel Trogamid and cartridge with INOX network.
The head of the filter AP-ECO is equipped with female threaded connections also has a bleed valve useful during the filling phase and maintenance of the filter.

print Self cleaning filters

SELF CLEANING FILTER - model AP-STD

The filter AP- STD has been designed for the filtration of drinking water and industrial . Its function is to protect both the pipes that the installations connected to it from corrosion and deterioration due to the passage of foreign bodies such as sand, rust particles , etc. .
The filter made with brass head , SAN bowls , with mesh filter cartridge Arnite polyester washable.
The HT version suitable for the filtration of water at high temperature (up to 80 °C) and equipped with a vase Trogamid cartridge and network with steel.
The washing occurs in fast and easy way by actuating the tap at the bottom of the vessel. The head of the filter AP- STD has connections with male thread complete swivel fittings for an easy installation , in the upper part are arranged two G1 / 8 " that can be used to facilitate the maintenance phase but also to add 2 useful gauges to monitor the pressure upstream and downstream of the filter cartridge .

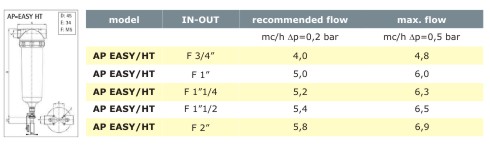

FILTRO AUTOPULENTE MOD. AP-EASY HT

Filter cap easy to use and simple maintenance, removes sand, metals, and suspended particles. Especially suitable for hot water and high pressures. Made with brass head, TROGAMID transparent vase, brass drain valve. The filter comes complete with stainless steel filter cartridge. Dry the cartridge quick and easy. Available in various sizes, ideal for the installation at the entrance of the water system for household and industrial use.

print   Self cleaning filters II
